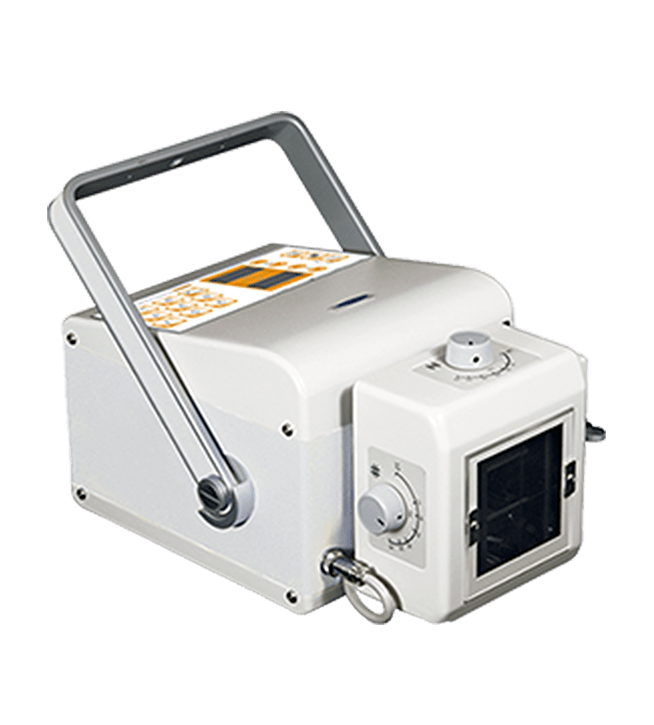

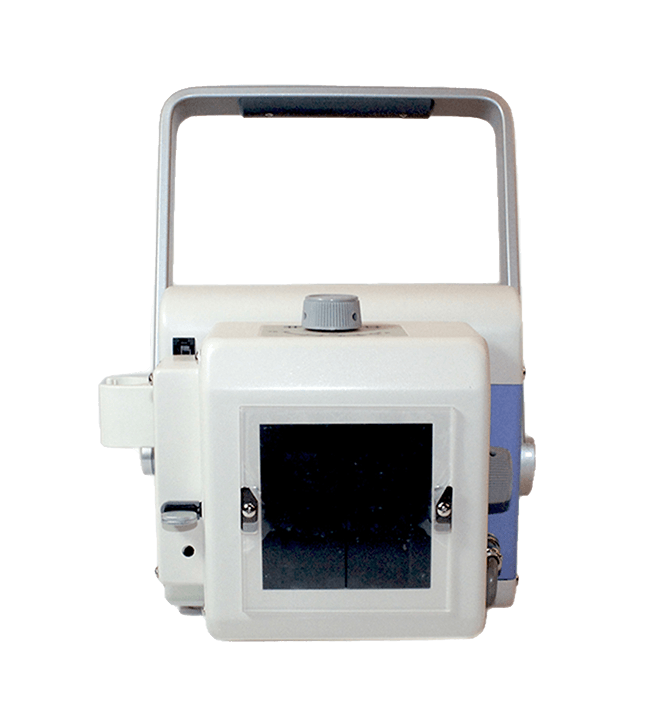

Poskom PXP-60HF Portable X-ray Generator
High-frequency portable X-ray generator
Uncompromising performance, maximum power and excellent portability: the Poskom PXP-60HF is the top-of-the-range model among compact monoblock generators. Developed to meet the most demanding diagnostic requirements, it is ideal for advanced home radiography, intensive care units and emergency medicine, particularly for examining complex anatomical areas.
Engineered to interface natively with the latest digital radiography (DR) systems and CR systems, it ensures superior beam penetration and image quality in any operating scenario, while maintaining a slim profile that speeds up the entire clinical workflow.
Portable X-ray Generators
Poskom PXP-60HF
The Poskom PXP-60HF stands out for its extraordinary output power of 3.2 kW, capable of delivering up to 60 mA at 100 kV. This exceptional energy level allows extremely short exposure times, minimizing motion artifacts in the patient. The exposure range covers voltages from 40 to 100 kV in 1 kV increments, with accurate mAs modulation from 0.4 to 100 mAs across 25 steps.
The system is equipped with a high-performance X-ray tube (a 2.0 mm focal spot and anode heat capacity of 40 kHU), ensuring stability and durability even during intensive work sessions. The integrated manual collimator includes a powerful timed halogen lamp and an integrated laser pointer to ensure millimetric alignment and precise measurement of the focal distance (SID). In addition, the flat touch panel with digital display includes a 180° LED readout reversal function to facilitate parameter monitoring from any position.
Despite its fixed-system specifications, it maintains an optimized weight of just 13 kg and is protected by a robust impact-resistant housing. Supplied complete with a rigid aluminum carrying case, it can be set up in moments on mobile pantograph stands or folding supports for immediate use in the field.
Complete the system with a digital DR detector
The portable generator can be paired with wireless digital detectors, transforming it into a complete portable digital radiography solution. Direct image acquisition eliminates development times and allows the examination to be viewed immediately on a computer, improving the diagnostic workflow and reducing operating times.
Thanks to its compatibility with the panels offered by IBIS, the system can be configured for human applications, providing high image quality, maximum portability and ease of use.
Advantages of the complete DR solution
- Immediate image viewing
- No CR system or development required
- Fully digital workflow
- Greater operational productivity
- Easy transport and installation
- Ideal solution for home visits, mobile services and outpatient clinics
Poskom PXP-60HF
Technical specifications
- Voltage / Current: 100kV / 60mA
- kV range: 40~100kV (1 step)
- mAs range: 0.4~100mAs (25 steps)
- Max Output: 3.2kW @ 80kV
- 2.0mm focal spot
- Heat capacity: 40 kHU
- Light field: 35x35mm @ 65mm SID
- Minimum light field: 5x5cm @ 1mt SID
- Dosimeter: optional
- Laser pointer
- 8 APR programs
- Reversible 7-segment display
- Dual-action exposure button
- Supplied with aluminum flight case
- Available stand: PXMS-1800
- Power supply: 220/240Vac +/-10% 50/60 Hz
- Dimensions: 250x195x355mm
- Weight: 14.6 kg
