Portable X-ray Generator

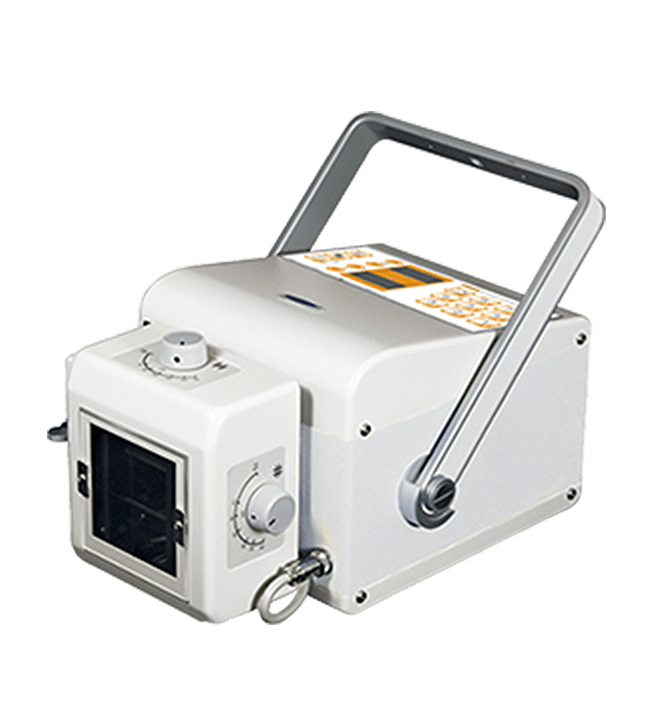

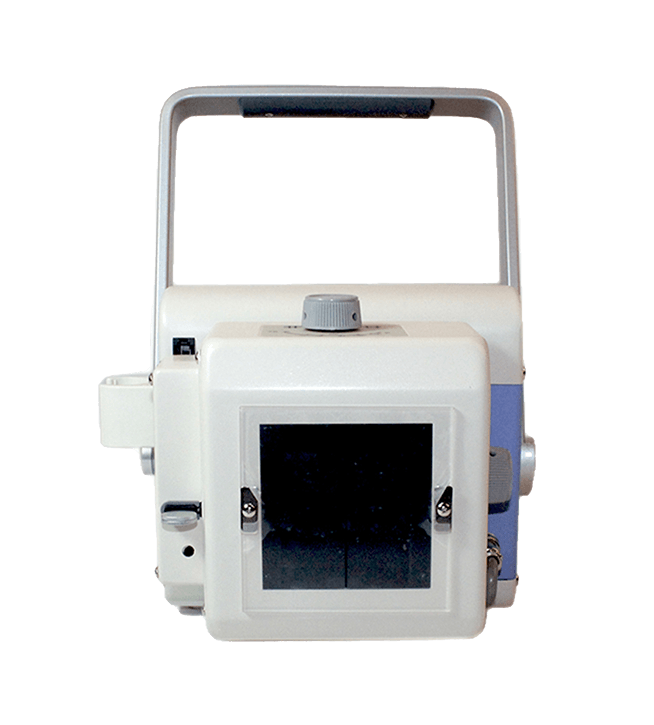

Poskom PXP-40HF
High-power, multidisciplinary high-frequency portable X-ray generator
Compact, powerful and versatile, the Poskom PXP-40HF is designed for multidisciplinary radiological applications both in clinics and in the field. Thanks to its optimized power and maximum emission stability, it is the ideal solution for comprehensive home radiography examinations, nursing homes, advanced sports medicine and sporting events.
Designed to integrate perfectly with modern digital radiography (DR) systems and CR systems, it ensures optimal dose management and guarantees top-quality diagnostic images under any logistical conditions, significantly speeding up the operational workflow.
Portable X-ray Generators
Poskom PXP-40HF
The Poskom PXP-40HF is a 2.4 kW high-frequency portable X-ray generator, designed to provide excellent radiographs even of complex anatomical regions. It offers a voltage range of 40 to 100 kV and an extended mAs range of 0.4 to 100 mAs (with a maximum of 35 mA), ensuring considerable flexibility in the choice of exposure protocols.
The system is equipped with a 1.2 mm fine-focus X-ray tube, which reduces geometric blur and enhances the contrast of anatomical details. To maximize operational precision on the move, it features a manual collimator with a timed light and an integrated dual laser pointer, essential for immediate centering and rapid visual verification of the correct source-to-image distance (SID). It also has an automatic line voltage compensation system and a convenient reversible digital display for easy reading from any angle.
Supplied as standard with a sturdy hard transport case and designed for use with folding or mobile pantograph stands, the Poskom PXP-40HF perfectly meets the demands of intensive mobility, integrating natively with the main flat-panel digital detectors and CR systems available on the market.
Complete the system with a digital DR detector
The portable generator can be paired with wireless digital detectors, transforming it into a complete portable digital radiography solution. Direct image acquisition eliminates development times and allows the examination to be viewed immediately on a computer, improving the diagnostic workflow and reducing operating times.
Thanks to its compatibility with the panels offered by IBIS, the system can be configured for human applications, providing high image quality, maximum portability and ease of use.
Advantages of the complete DR solution
- Immediate image viewing
- No CR system or development required
- Fully digital workflow
- Greater operational productivity
- Easy transport and installation
- Ideal solution for home visits, mobile services and outpatient clinics
Poskom PXP-40HF
Technical specifications
- Voltage / Current: 100kV / 35mA
- kV range: 40~100kV (1 step)
- mAs range: 0.4~100mAs (25 steps)
- Max Output: 2.4kW @ 80kV
- 1.2mm focal spot
- Thermal capacity: 20 kHU
- Light field: 35x35mm @ 65mm SID
- Minimum light field: 5x5cm @ 1mt SID
- Dosimeter: optional
- Laser pointer
- 8 APR programs
- Reversible 7-segment display
- Two-stage X-ray button
- Supplied with an aluminum flight case
- Stand available: PXMS-1800
- Power supply: 220/240Vac +/-10% 50/60 Hz
- Dimensions: 250x195x355mm
- Weight: 12.8 kg
