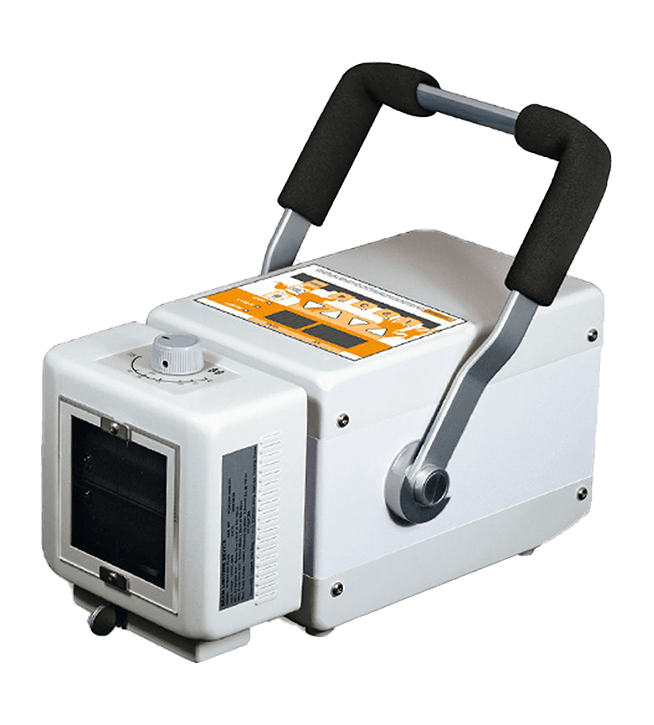

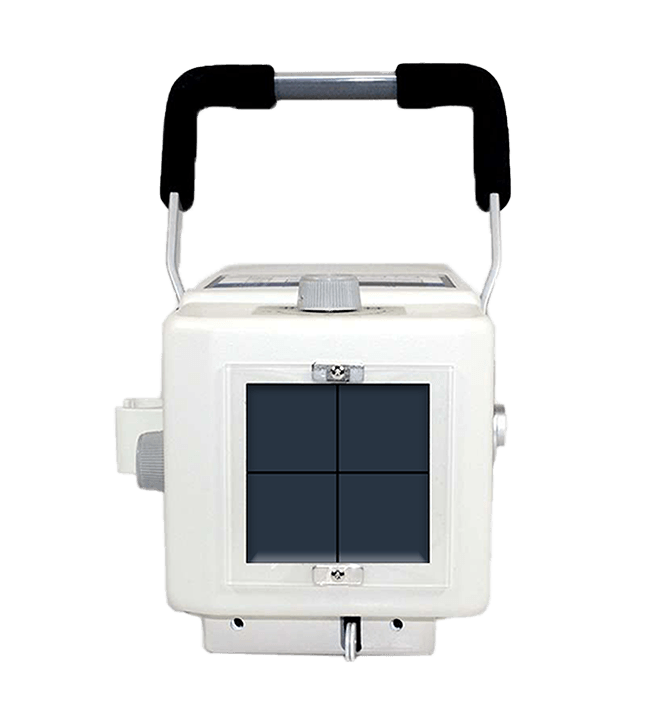

Portable X-ray Generator
Poskom PXP-20HF plus
Ultra-compact high-frequency portable X-ray generator
Lightweight, powerful and highly reliable, the Poskom PXP-20HF plus is specifically designed for radiological applications in both human and veterinary medicine, where maximum mobility and diagnostic precision are required. With its compact design and extremely low weight, it is the ideal solution for clinical work in the field, home examinations, emergency departments and sports medicine.
Designed to integrate perfectly with the latest digital radiology (DR) systems and CR systems, it gives professionals complete freedom to perform examinations wherever needed, ensuring exceptionally sharp radiographic images and a fast, smooth workflow.
Portable X-ray Generators
Poskom PXP-20HF plus
The Poskom PXP-20HF plus is a portable high-frequency conversion X-ray generator, designed to offer the best power-to-weight ratio in its category. Featuring an adjustable voltage range from 40 to 100 kV and precise mAs control (from 0.4 to 50 mAs), it can cover a wide range of radiographic applications with excellent emission stability.
The system features an optimized focal spot of 1.5 mm, ideal for obtaining high-contrast anatomical detail while reducing geometric blur. It is equipped with a manual collimator fitted with a high-brightness LED lamp and an integrated laser pointer for immediate and accurate beam centering. Intuitive controls and digital displays allow preset anatomical parameters (APR) to be stored to optimize exposure times.
Supplied as standard with a practical hard case for safe transport and designed for installation on height-adjustable folding stands, the Poskom PXP-20HF plus fully meets the needs of outpatient clinics, freelance veterinarians and mobile diagnostic services, easily interfacing with flat-panel digital detectors and CR readers.
Complete the system with a digital DR detector
The portable generator can be paired with wireless digital detectors, transforming it into a complete portable digital radiography solution. Direct image acquisition eliminates development times and allows the examination to be viewed immediately on a computer, improving the diagnostic workflow and reducing operating times.
Thanks to its compatibility with the panels offered by IBIS, the system can be configured for human applications, providing high image quality, maximum portability and ease of use.
Advantages of the complete DR solution
- Immediate image viewing
- No CR system or development required
- Fully digital workflow
- Greater operational productivity
- Easy transport and installation
- Ideal solution for home visits, mobile services and outpatient clinics
Poskom PXP-20HF plus
Technical specifications
- Voltage / Current: 100kV / 20mA
- kV range: 40~100kV (1 step)
- mAs range: 0.3~50mAs (22 steps)
- Max Output: 1.6kW @ 80kV
- 1.2mm focal spot
- Heat capacity: 20 kHU
- Light field: 35x35mm @ 65mm SID
- Minimum light field: 5x5cm @ 1mt SID
- Dosimeter: optional
- Laser pointer
- 4 APR programs
- Reversible 7-segment display
- Dual-action exposure button
- Supplied with an aluminum flight case
- Available stand: TR100 / PXMS-1800
- Power supply: 220/240Vac +/-10% 50/60 Hz
- Dimensions: 220x200x352mm
- Weight: 9.8 kg
