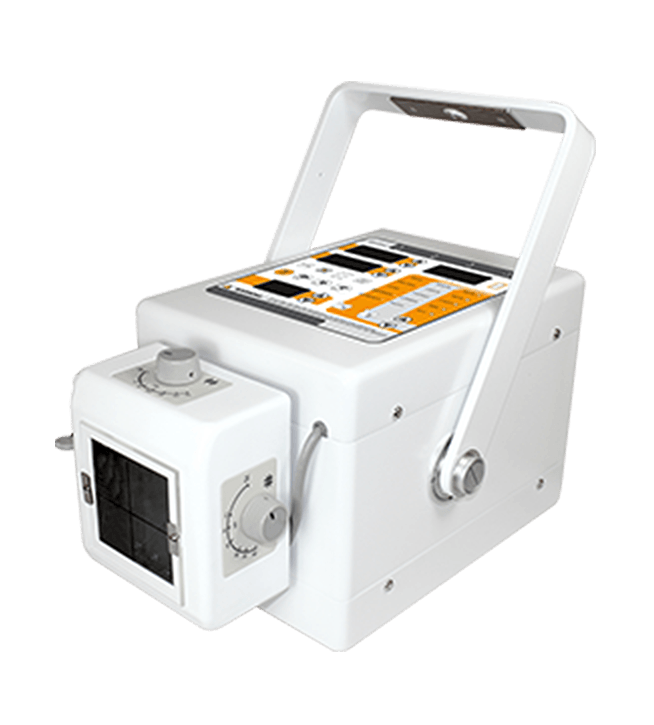

Poskom PXP-100CA Portable X-ray Generator
High-frequency portable X-ray generator
The Poskom PXP-100CA redefines the limits of mobile radiology. Thanks to its revolutionary ultra-capacitor technology, it delivers hospital-grade power in a compact form factor. It is the preferred choice for intensive home radiology services, emergency field diagnostics, and mobile clinics.
Specifically designed for immediate plug-and-play integration with modern flat-panel digital (DR) and CR systems, this system ensures consistent and stable X-ray emissions regardless of fluctuations or voltage drops in the local power line, dramatically optimizing clinical workflow in any logistical setting.
Portable X-ray Generators
Poskom PXP-100CA
The Poskom PXP-100CA ranks at the top of its category thanks to its outstanding maximum power of 5.0 kW, combining an adjustable voltage range from 40 to 110 kV (in 1 kV increments) and a maximum current reaching 100 mA. The innovative 50 kHz high-frequency inverter circuit, coupled with the ultra-capacitor, stores energy in just a few seconds, eliminating the impact of line voltage drops and allowing an extremely wide mAs exposure range from 0.1 to 200 mAs (divided into 40 steps).
The unit features a professional X-ray tube with a 1.8 mm focal spot and high thermal capacity, and a 15° target angle, designed to dissipate heat quickly and ensure very high-contrast radiographic images, even of the thickest anatomical structures. The manual collimator includes a high-efficiency timed halogen lamp for perfect delimitation of the examination area. The control console is equipped with an anti-glare digital flat touchpad with LED display and supports up to 330 anatomical storage slots (PROM memory), ensuring immediate exposure settings and patented remote control via the hand switch.

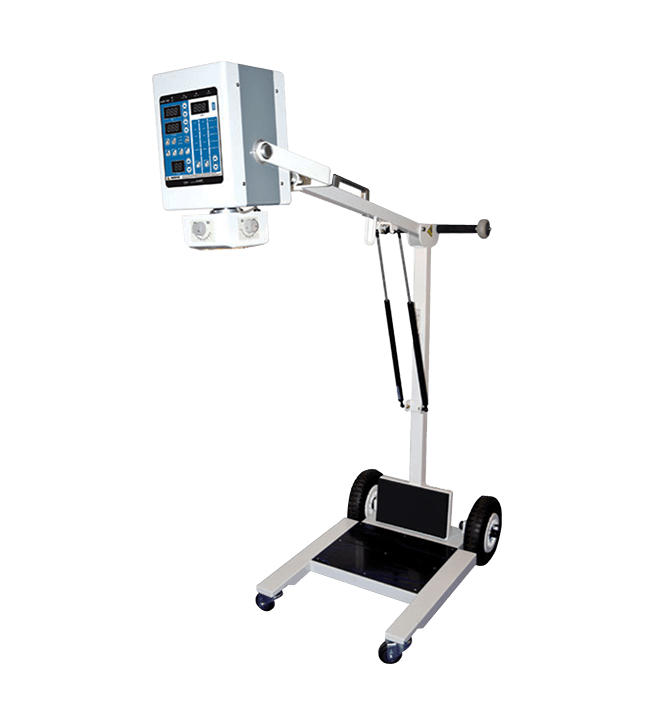

Featuring an ultra-robust, sealed casing designed to withstand impacts and contamination in the field, the generator has an operating weight of 20.5 kg. It is supplied complete with a sturdy molded aluminum transport case and is natively designed to be mounted on flexible mobile stands or dedicated trolleys for easy movement in hospital corridors or at home.
Complete the system with a digital DR detector
The portable generator can be paired with wireless digital detectors, transforming it into a complete portable digital radiography solution. Direct image acquisition eliminates development times and allows the examination to be viewed immediately on a computer, improving the diagnostic workflow and reducing operating times.
Thanks to its compatibility with the panels offered by IBIS, the system can be configured for human applications, providing high image quality, maximum portability and ease of use.
Advantages of the complete DR solution
- Immediate image viewing
- No CR system or development required
- Fully digital workflow
- Greater operational productivity
- Easy transport and installation
- Ideal solution for home visits, mobile services and outpatient clinics
Poskom PXP-100 CA
Technical specifications
- Voltage / Current: 110kV / 100mA
- kV range: 40~110kV (1 step)
- mAs range: 0.1~100mAs (40 steps)
- Max Output: 5kW @ 75kV
- 1.5mm focal spot
- Thermal capacity: 76 kHU
- Light field: 47x47mm @ 1mt SID
- Minimum light field: 5x5cm @ 1mt SID
- Dosimeter: optional
- Laser pointer
- 330 APR Programs
- Reversible 7-segment display
- Dual-action X-ray button
- Supplied with aluminum flight case
- Stand available: PXMS-2010
- Power supply: 220/240Vac +/-10% 50/60 Hz
- Dimensions: 254x225x423mm
- Weight: 20.5 kg
