Portable X-ray Generators

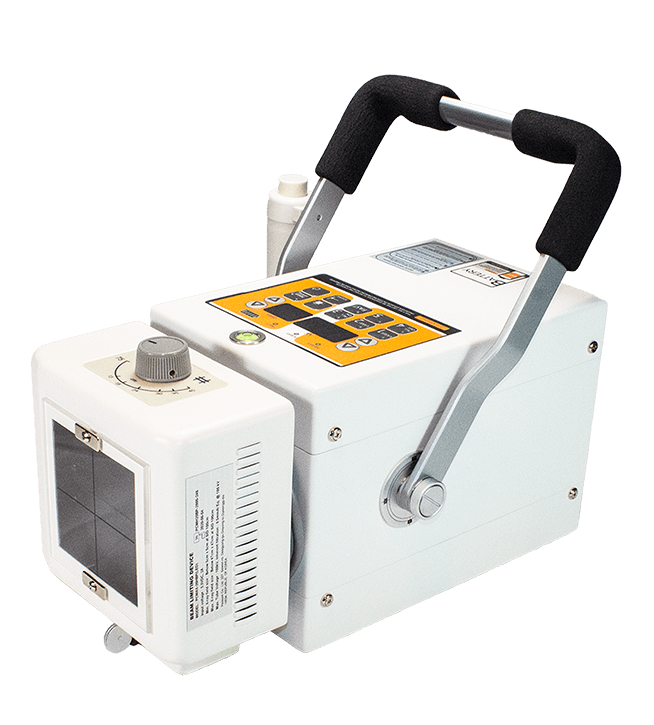

Poskom PXM-20BT Plus

The Poskom PXM-20BT plus combines the versatility of battery technology with a consistent power output of 1.6 kW, capable of operating with a voltage range of 40 to 100 kV and an adjustable current between 12 and 20 mA. Precise mAs exposure control (from 0.4 to 50 mAs) ensures maximum image sharpness while minimizing patient dose. The unit is equipped with a fine-focus X-ray tube of 1.2 mm with an anode heat capacity of 20 kHU, ideal for displaying high-contrast micro-anatomical details.

The system’s technological core is its integrated rechargeable high-efficiency lithium-ion battery, which ensures outstanding autonomy of up to 180 exposures per charge, eliminating dependence on external power outlets. A full recharge takes approximately 2–3 hours thanks to the intelligent charger with automatic voltage compensation. The manual collimator features high-brightness LED guide timing and an integrated dual laser pointer system to instantly and precisely calculate the correct source-to-image distance (SID) to the millimetre.

Despite its clinical-level performance, it maintains an extremely balanced weight of approximately 11.2 kg, housed in a reinforced protective casing sealed to withstand impacts, dust and contamination in the field. The microprocessor console features 15 preset anatomical programs (APR), dedicated battery power indicators and a digital LED display with a 180° reading reversal function to facilitate parameter monitoring from any operating angle.
