Portable X-ray Generators

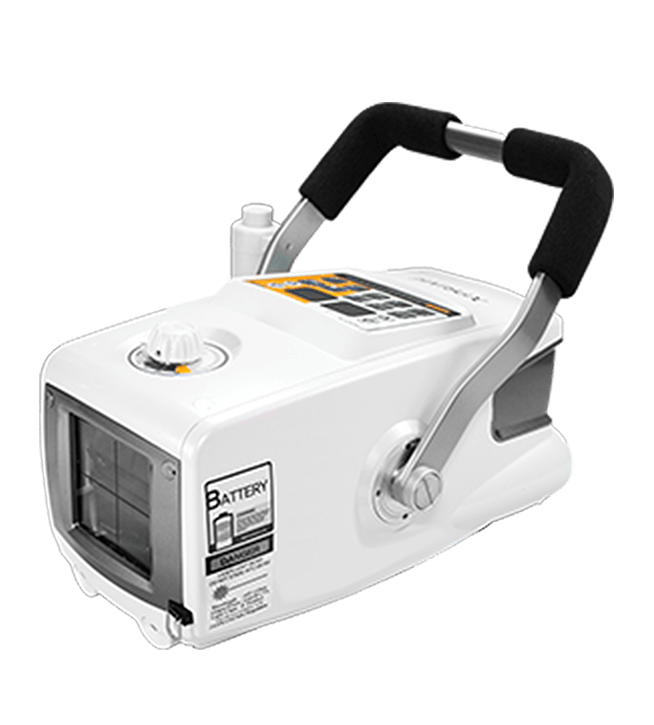

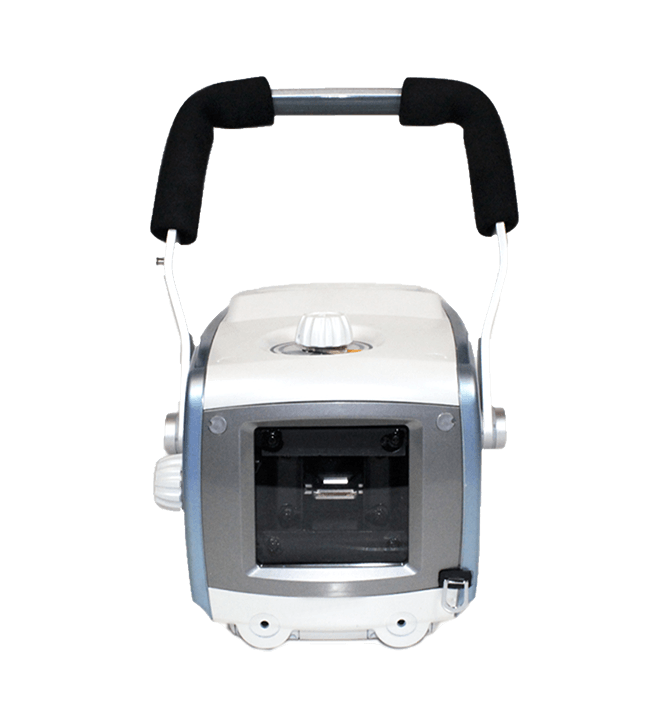

Poskom HUM-20BT

The Poskom HUM-20BT stands out as one of the most compact and lightweight cordless X-ray units on the market, with a total weight of just 7.2 kg, including the battery. Equipped with a 1.6 kW high-frequency generator, it offers an adjustable voltage range of up to 90 kV (or 100 kV depending on the line configuration) and a maximum current of 20 mA, making it ideal for imaging the limbs and chest in home and emergency settings.

The system’s technological core is its advanced lithium-polymer battery, which provides outstanding operating autonomy, delivering up to 286 exposures on a single charge. The fast charging cycle allows the battery to reach maximum efficiency in less than 3–4 hours. To ensure maximum precision and millimetre-accurate centring, the generator features a high-brightness manual LED collimator and an efficient integrated dual laser pointer system, ideal for quickly measuring the optimal focal distance (SID), even in bright daylight.

The control console features a digital LED display with a 180° reading reversal function and supports up to 15 preset anatomical memory slots (APR) to speed up the selection of kV and mAs parameters in the field. Built with a high-strength injection-moulded plastic body and a reinforced steel handle, the structure is sealed to safely withstand external impacts and environmental contamination during transport.
